CTEC 800 Series 14' (4.2M) Tail Call Lead NC805C/14
- Brand: CTEC
- Product Code: NC805C/14
- Availability: In Stock
£15.85 Inc VAT £13.21 Ex VAT
CTEC 800 Series 14' (4.2M) Tail Call Lead
Generate standard calls via call points and remote sockets.
Allows users to remotely generate Standard calls from armchairs, beds, etc.

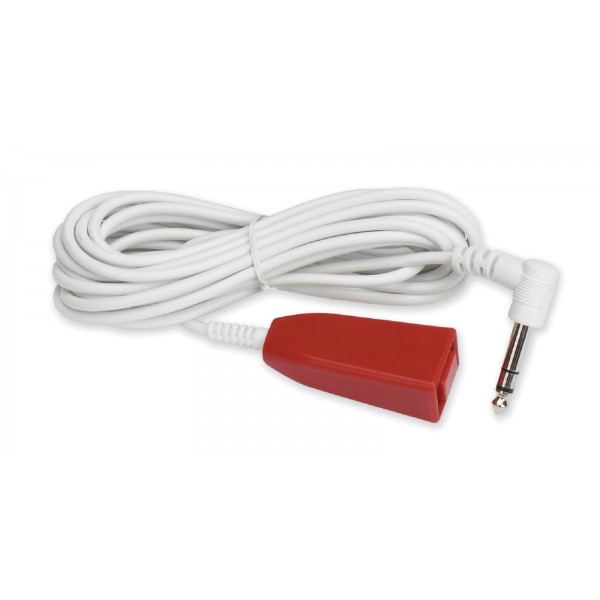

Comprises a pear-shaped call push, 4.2m (14ft) trailing lead and a 6.5mm remote jack plug.
Easily connects to the 6.35mm remote socket on compatible Quantec and 800 Series call points.
Activating the pear push or removing the tail call lead from a call point's remote socket will generate a Standard call
Compatibility C-TEC's Quantec and 800 Series Call Systems.
Quiescent current 0mA (none).
Alarm current Determined by the type of control equipment and number / type of field devices connected to the system.
Indicators Reassurance LED on host call point will illuminate steady when call push is activated and/or removed.
Controls Red Call button (generates a Standard call on activation when connected to a compatible Quantec or 800 Series call point).
Connections 6.35mm (quarter inch) jack plug.
Onboard Sounder No.
Onboard Infrared Receiver No.
Product dimensions (mm) 26 W x 21 H x 74 D mm (pear push). Lead is 4.2m (14ft) long.
Construction & finish Plastic.
IP Rating IP40.
Weight 118g
Operating temperature -5ºC to +40ºC. Max. relative humidity 95% non-condensing.
