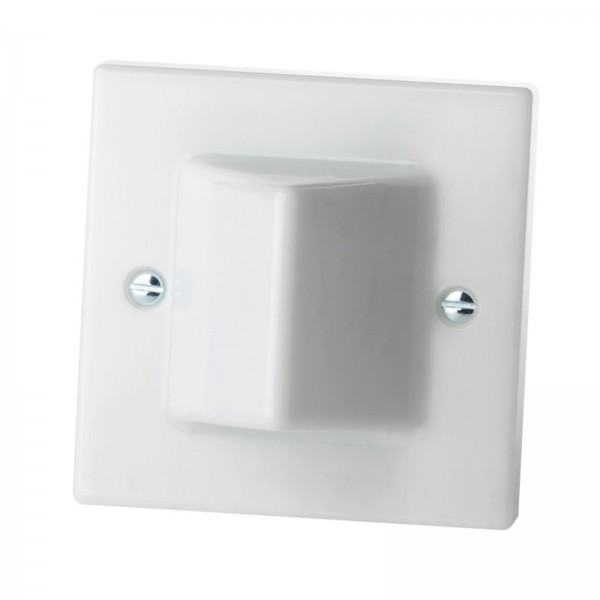

CTEC 800 Series Overdoor Light with Sounder
- Brand: CTEC
- Product Code: NC806CS
- Availability: 3-5 Days
£33.92 Inc VAT £28.27 Ex VAT
This product has a minimum quantity of 6
CTEC 800 Series Overdoor Light with Sounder
Provides an audible and visual indication of 800 Series Alarm calls outside bedrooms, WCs and any other area fitted with an 800 Series calling device.
Indicates Standard calls via a constant tone/constant red light and Emergency calls via a pulsing tone/pulsing red light.
Dual red LEDs and triangular diffuser make it highly visible from a distance.
Mounts on a standard UK 25mm single gang flush or surface back box.
Can also be used as an 'area indicator' at corridor junctions, staff workstations, etc.
Finished with tough, durable ABS plastic.
Quiescent current 0mA (none).
Alarm current Determined by the type of control equipment and number / type of field devices connected to the system.
Indicators Dual ultra-bright red Alarm LEDs (lit constantly for standard calls, intermittently for emergency calls).
Controls None (the device is controlled by the master calling device it is connected to).
Connections 1 (Signal); -Ve (Negative); +Ve (Positive).
Onboard Sounder Yes. Sounds constantly for standard calls, intermittently for emergency calls.
Onboard Infrared Receiver No.
Product dimensions (mm) 87 W x 87 H x 68 D mm. Mounts on a UK 25mm single gang back box.
Construction & finish Plastic.
IP Rating IP41.
Weight 52g.
Operating temperature -5ºC to +40ºC. Max. relative humidity 95% non-condensing.
