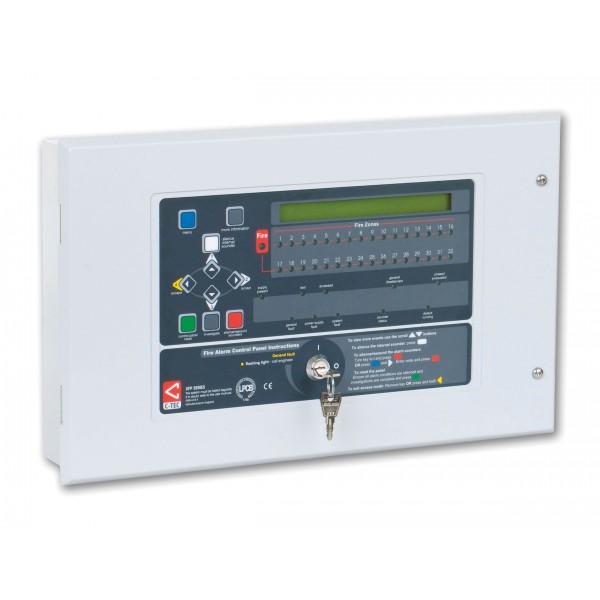

CTEC XFP Addressable One Loop 32 Zone Panel

CTEC XFP Addressable One Loop 32 Zone Panel

  • Brand: CTEC
  • Product Code: XFP501/X
  • Availability: 3-5 Days

£684.00 Inc VAT £570.00 Ex VAT

CTEC XFP Addressable One Loop 32 Zone Panel

XFP networkable one loop 32 zone panel, XP95/Discovery protocol. 3A.

LPCB certified to EN54 parts 2 & 4, it is supplied in a durable metal enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Apollo's XP95/Discovery protocol.

Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on a network of up to 8 XFP master panels, it is one of Europe's best-selling addressable fire panels.

Requires 2 x 12v 7.0Ah lead-acid batteries.


Approvals/certifications                          Certified to EN54-2/4 by the LPCB (0832-CPD-TBC)
Protocol/compatibility                             230V 50/60Hz
Mains rated current                                 680mA maximum
Internal power supply                             27Vdc nominal
Total output current limited to              3A @ 230Vac (Imax.A 250mA; Imin. 70mA)
Quiescent current                                     80mA (loop unloaded)
Max battery size and type                       2 x 12V 7Ah VRLA connected in series
No. of loop drivers                                    1
Max. loop output current                        500mA (25V min; 34V max)
Max. loop length                                       1KM
Max. addressable devices per loop       126
No. of conventional sounder circuits     2 (Max. length per circuit is 500m)
EOL resistor value                                     6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Max. sounder output current                 400mA
Product dimensions (mm)                       410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid).
Construction & finish                                Metal
IP Rating                                                     IP30
Weight                                                        4.5kg (no batteries)
Operating conditions/temperature       -5ºC to +40ºC. Max relative humidity: 95%
