Apollo Series 65 Optical Smoke Detector 55000-317
- Brand: Apollo
- Product Code: 55000-317
- Availability: In Stock
£18.01 Inc VAT £15.01 Ex VAT

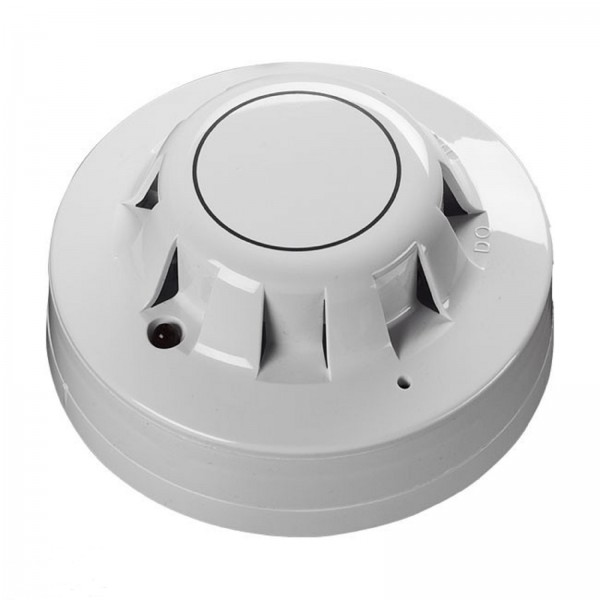

Apollo Series 65 Optical Smoke Detector
This detector uses photosensitive technology which responds well to slow burning smouldering fires. Suitable for use with conventional four-wire fire alarm systems.
Ideal for use in bedrooms and escape routes.
Unaffected by wind or pressure. Incorporates a pulsing LED within the housing of the detector.
Produces a red light in alarm.
Wide 9-33V DC operating voltage.
Approvals/certifications Certified to EN54-7 by the LPCB.
Supply wiring 2-wire monitored, polarity sensitive.
Supply/operating voltage 9 to 33V DC.
Quiescent current 30-50µA @ 24 VDC.
Alarm voltage 6-28V DC.
Alarm current 61mA @ 28V DC; 52mA @ 24V DC; 18mA @ 10V DC.
Expansion connections Remote LED output. Current sink to negative line limited to 17mA.
Product dimensions (mm) 100mm diameter x 50mm deep (detector in base); 100mm diameter x 42mm deep (detector only).
Construction & finish White polycarbonate V.O in accordance with UL94. Nickel plated stainless steel terminals.
IP Rating IP23D.
Weight 99g (detector only); 150g (detector in base).
Operating conditions/temperature -20ºC to +60ºC.
