Cranford Controls VXB Ceiling Mounted Beacon Shallow Base
- Brand: Cranford Controls
- Product Code: 512-205
- Availability: 3-5 Days
£50.46 Inc VAT £42.05 Ex VAT

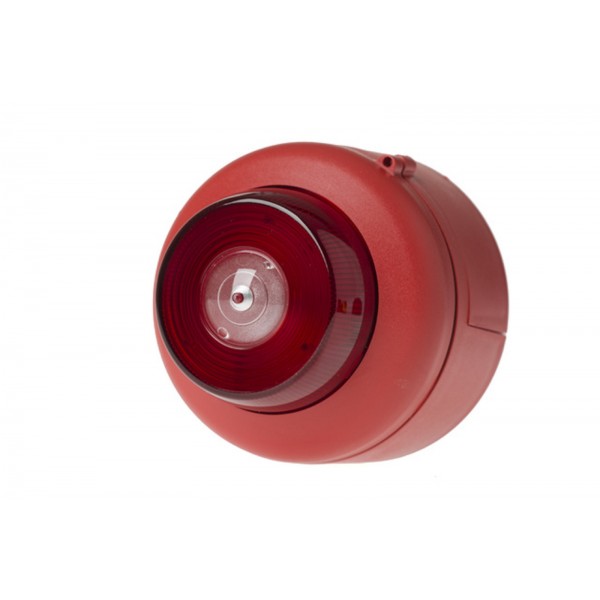

Cranford Controls VXB Ceiling Mounted Beacon Shallow Base
Suitable for use with a conventional 1 EVAD C-3-8 ceiling mounted beacon.
Approved to EN54-23(VAD Beacon) .
0.5Hz flash rate available via the DIL switch.
Shallow base IP21C and deep base IP33C.
Unique twist and lock bayonet mounting system.
Removable cover on deep base for surface wiring.
Features base locking system as standard.
Red body. Red flash. Shallow base.
Approvals EN54-23 (VAD Beacon)
Voltage range (Vdc) 18 - 30
Operating frequency (Hz) 440 - 2900
Temperature range (°C) -20 to +70
Flash rate c.1Hz (approved)
Monitoring reverse polarity
Protection rating (EN54 approved) IP21C (shallow) IP33C (deep)
Boxed weight (g) 220 (shallow)
Body colours available red or white (ABS fire retardant plastic)
0.5Hz flash rate available via the DIL switch
32 tones plus a selectable override tone
