24V 5A Isolatable Relay on a Plate
- Brand: CTEC
- Product Code: BF366
- Availability: In Stock
£44.03 Inc VAT £36.69 Ex VAT

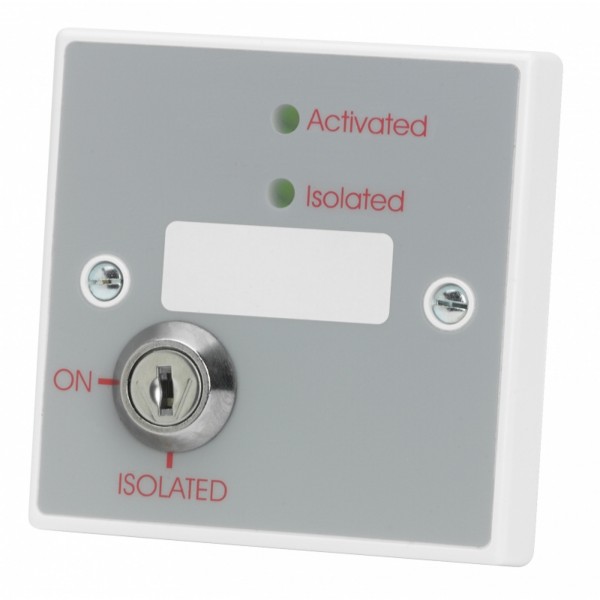

24V 5A Isolatable Relay on a Plate
A 24V 5A isolatable relay on a plate, comes with a buzzer. Single gang.
Combines the functions of the BF376 5A relay and BF367 device isolator.
Includes a key switch isolation facility allowing the relay operation to be temporarily disabled during routine test and maintenance to prevent autodialler, water sprinklers, roller shutters, etc. from activating.
When isolated, the unit's Isolated LED will flash and a warning beeper will sound every 8 seconds to ensure devices are not inadvertently left in the isolated state
A relay is triggered via a control panel’s open collector output or a standard polarised fire alarm sounder circuit (if connecting to a sounder circuit, the relay will return to its normal state when the fire condition is cleared or silenced - check with the approving authority that this arrangement is acceptable prior to installation).
Fits on standard UK 25mm flush or surface mount back boxes.
Activation current Typically 30mA @ 24VDC.
Indicators Red Activated LED; Amber Isolated LED.
Controls Isolating keyswitch.
Connections -VE; +VE; SW -VE; SW +V (CONN1); NC; C; NO (SW1 & SW2). Contact rating @ 24VDC is 5A (resistive) 2A (inductive); Contact rating @ 240VAC is 5A (resistive) 2A (inductive)
Product dimensions (mm) 85 W x 85 H x D 50mm (Can be mounted on a standard UK 25mm single gang flush or surface back box).
Construction & finish White PVC plate; Grey label; Silver nickel contacts.
IP Rating IP40.
Weight 112g.
Operating conditions -10ºC to +60ºC.
Notes Input coil voltage range 17-30V DC.
