CTEC ActiV Base with Relay
- Brand: CTEC
- Product Code: C4408R
- Availability: 3-5 Days
£15.88 Inc VAT £13.23 Ex VAT
This product has a minimum quantity of 10

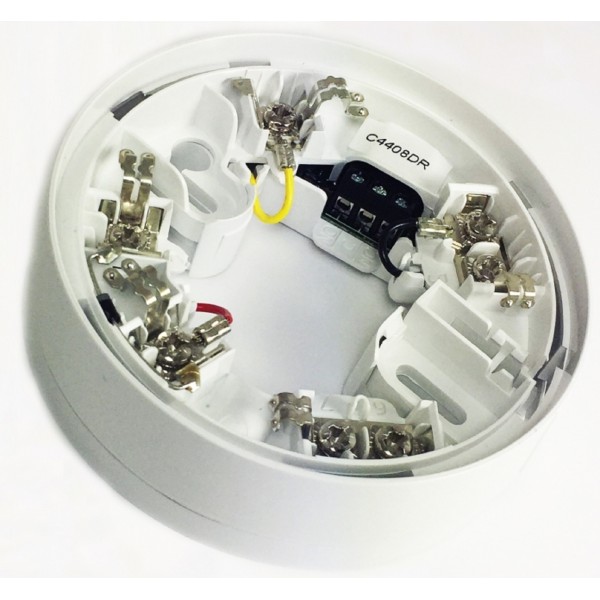

CTEC ActiV Base with Relay
The ActiV Base with a relay is compatible with all ActiV detectors. Suitable for a conventional fire alarm system.
Includes a 1A @ 24 VDC relay controlled by detector’s remote LED output.
Easy to fit with lots of working space.
Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all ActiV detectors.
Integrated detector/base locking mechanism, head removal tool and ID tag.
Simple ‘click and twist’ design.
Remote LED terminals for the optional connection to a remote indicator.
Approvals/certifications Certified to the relevant parts of EN54 by Intertek
Supply wiring 2-wire monitored, polarity sensitive.
Connections (1) +V In; (2) +V Out; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. NO/C/NC relay connections. Contact rating @ 24VDC is 1A. Terminals can accept up to 2.5mm fire rated cable.
Product dimensions (mm) 102.2 diameter x 30 deep.
Construction & finish White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers.
IP Rating IP42.
Weight 86g.
