Quantec Corridor Display (no controls)
- Brand: CTEC
- Product Code: QT608CD
- Availability: 3-5 Days
£187.57 Inc VAT £156.31 Ex VAT

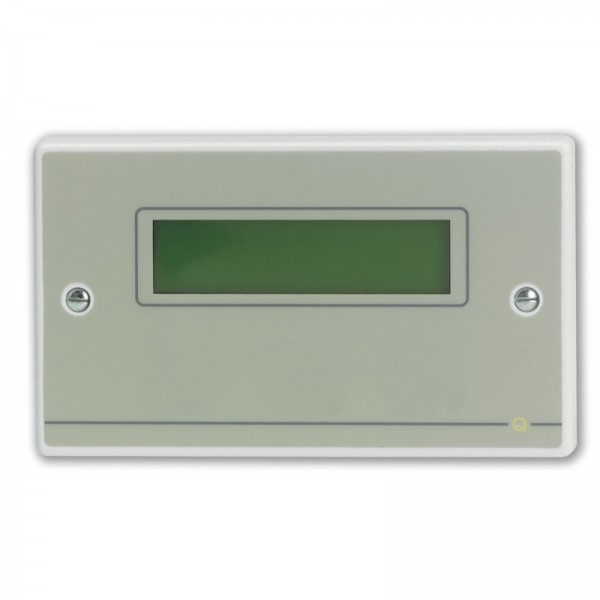

Quantec Corridor Display (no controls)
A 16 character x 2 line display used to indicate incoming calls in corridors, staff rooms, nursing stations, etc.
Shows call type, call location and (depending on the device used to make the call) the User ID or name of the person calling.
Highest priority calls are shown first with a message saying how many calls are waiting.
Power requirements Nominal 24V DC (from Quantec Controller/Network).
Quiescent current 5mA (with back light off).
Indicators 2 line x 16 character backlit LCD display.
Controls None. If controls are required use a QT608C display.
Connections Net +: Net -
Expansion connections External sounder connection (current sink to the NET- line rated at 30 V, 30mA, 300 mW dissipation max.)
Onboard Sounder Yes.
Onboard Infrared Receiver No.
Product dimensions (mm) 147 W x 87 H x 35 D mm. Mount on a 35mm deep back box.
Construction & finish Plastic.
IP Rating IP41.
Weight 166g
Operating conditions -5ºC to +40ºC. Max relative humidity: 95%.
