QT601-2 Quantec Main Controller

Brand: CTEC
Product Code: QT601-2
Availability: 3-5 Days

£373.57 Inc VAT £311.31 Ex VAT

Qty

0 reviews / Write a review

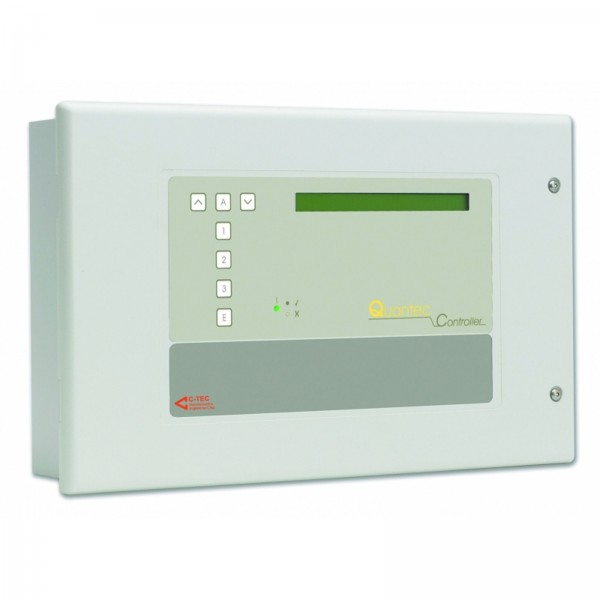

Quantec Main Controller

Supplies power to and controls a Quantec Addressable Call System.

Monitors all network devices and manages the routing and distribution of all calls.

Provides connections for network wiring, standby batteries, a laptop (for system programming), optional paging/DECT equipment, an optional printer or PC (to run Quantec’s QT707S Surveyor data management software).

Includes a library of 40 pre-set & 45 custom place names.

Includes space for 2 x 7.0Ah lead-acid batteries.

Mains supply    230V 50/60Hz.
Mains rated current                350mA maximum.
Internal power supply      27Vdc nominal.
Total output current limited to     3A @ 230Vac.
Max battery size and type    2 x 12V 7Ah VRLA connected in series.
PC connection                              CONN1 provides an RS232 connection for use with our Quantec Surveyor data management software (via a PC) or a Quantec Printer.
Indicators          2 line x 40 character backlit display; Power LED (lit when power is present, off when no power present).
Controls                                            Accept (A); Scroll Up; Scroll Down; Code Entry Buttons (1, 2, 3 and 4); Escape (E).
Connections                                     Plug-on type, largest acceptable conductor size 1mm2.
Expansion connections       CONN2 provides an RS232 connection for paging equipment.
Product dimensions (mm)       410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid).
Construction & finish       Metal base, plastic lid.
Weight       3.5Kg.
Operating conditions -5ºC to +40ºC. Max relative humidity: 95%.
