QT602 Quantec Call Point (button reset)
- Brand: CTEC
- Product Code: QT602
- Availability: In Stock
£39.17 Inc VAT £32.64 Ex VAT
This product has a minimum quantity of 5

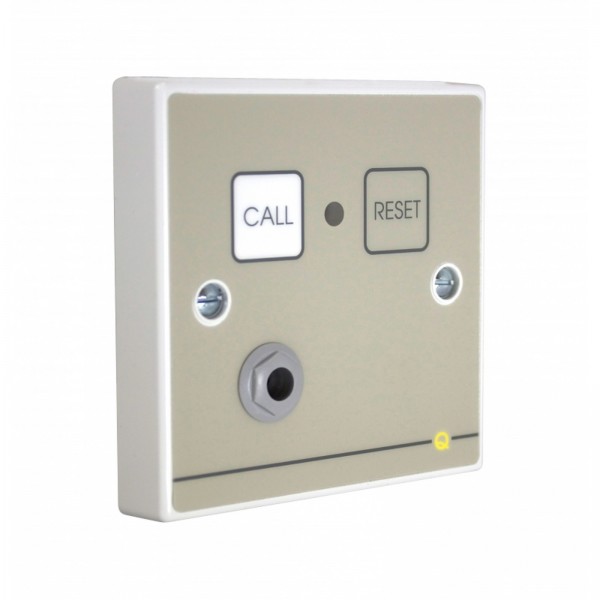

Quantec Call Point (button reset)
A programmable addressable call point c/w remote jack socket for use with C-TEC's Quantec Addressable Call System.
Includes a Call button, Reset button and red/green confidence light. Can make up to 5 levels of call - Standard, En-suite, Help Required, Emergency, Presence & Attendance (dependent on configuration and ancillary devices used).
Attack and Attendance calls can also be made if connected to compatible slave infrared receiver. Remote socket allows the connection of optional tail call leads, pressure mats, etc.
Can be programmed to operate in a multitude of ways using a QT423 configurator.
Connections provided for additional slave devices such as ceiling pulls, overdoor lights, slave infrared receivers and more.
Power requirements Nominal 24V DC (from Quantec Controller/Network).
Quiescent current Less than 3mA.
Alarm current 14mA.
Indicators Red/green confidence LED.
Controls Call button; Reset button. (QT602M magnetic reset version also available).
Connections Net +: Net -; R; G; L+; SW; IR; SLV.
Expansion connections R; G; L+; SW; IR & SLV terminals allow the connection of optional slave overdoor lights, slave call points, slave ceiling pulls and slave infrared receivers.
Onboard 6.35mm Remote Jack Socket Yes - for the optional connection of tail call leads/pear pushes, pressure mats and movement detectors.
Onboard Sounder No.
Onboard Infrared Receiver No.
Product dimensions (mm) 86 W x 86 H x 30 D mm. Can be mounted on a standard UK 25mm single gang flush or surface back box.
Construction & finish Plastic.
IP Rating IP20.
Weight 72g.
Operating conditions -5ºC to +40ºC. Max relative humidity: 95%.
