Quantec Slave Ceiling Pull Unit
- Brand: CTEC
- Product Code: QT607
- Availability: 3-5 Days
£17.17 Inc VAT £14.31 Ex VAT
This product has a minimum quantity of 10

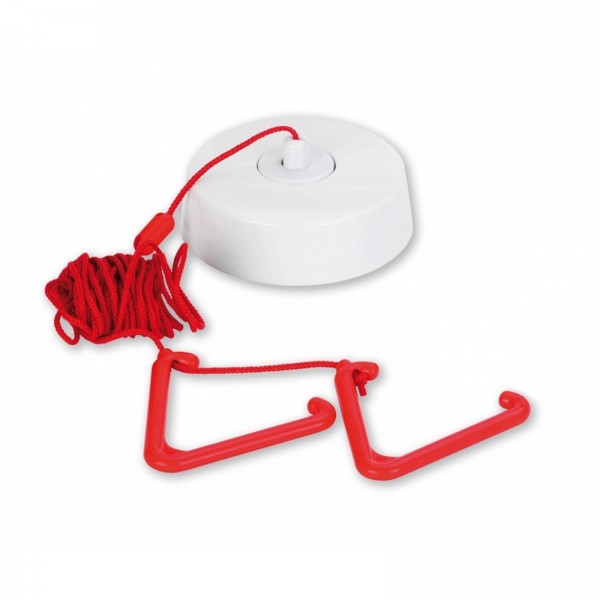

Quantec Slave Ceiling Pull Unit
Can be used to generate a Standard or En-suite call on a Quantec Addressable Call System.
Typically wired as a slave to a Quantec Addressable Call Point or Quantec Accessible Toilet Reset Point. Supplied with 3m of red nylon pull cord and two red open-sided triangular bangles for ease of use by the infirm.
Red confidence LED and diffuser emits a bright red glow over a wide area to reassure the user that a call has been made.
Surface mountable.
Quiescent current Less than 3mA.
Alarm current 6mA.
Indicators Red reassurance LED/diffuser (active in Alarm).
Controls Red pull cord (activated by pulling one of the QT607's bangles).
Connections Local +V; S (Switch); R (Red). Wire as a slave to a Quantec Addressable Call Point or Accessible Toilet Reset Point. See instructions for details.
Onboard Sounder No.
Product dimensions (mm) 93mm diameter x 27mm deep. Designed for ceiling mounting only. Base fits 16mm conduit and BESA centres.
Construction & finish Plastic.
IP Rating IP21.
Weight 56g.
Operating conditions -5ºC to +40ºC. Max. relative humidity 95% non-condensing.
