Sigtel 4 Line Master EVC Controller ECU-4

Sigtel 4 Line Master EVC Controller ECU-4

  • Brand: CTEC
  • Product Code: ECU-4
  • Availability: 3-5 Days

£865.61 Inc VAT £721.34 Ex VAT

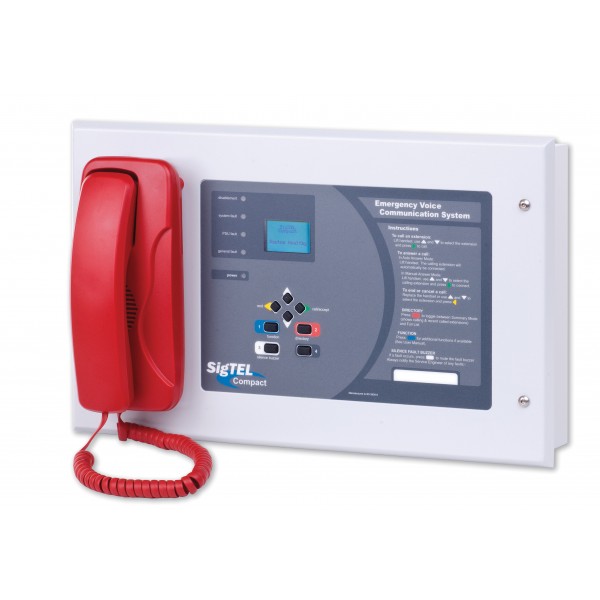

Sigtel 4 Line Master EVC Controller

The Sigtel 4 line master controller comes with handset and display. Ideal for disabled refuge, fire telephone and stadium marshalling applications.

Allows operators to communicate with up to four disabled refuge or fire telephone outstations.

Expandable to 12 lines using an ECU-8 expansion unit.

Networking facility allows up to four controllers (plus any expansion units) to be interlinked allowing systems of up to 64 lines to be implemented.

Supplied with a backlit LCD and handset.

Requires 2 x 7.0Ah lead-acid batteries.


Approvals/certifications                         Facilitates compliance with BS5839-9 when correctly installed.
Mains supply                                            230V 50/60Hz.
Mains rated current                                500mA.
Internal power supply                            19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
Total output current limited to             1.5A @ 230Vac
Quiescent current                                   100mA (controller with fault buzzer sounding) plus 1mA per Type A outstation and 3.2mA per Type B outstation.
Max battery size and type                      2 x 12V 7Ah VRLA connected in series.
No. of lines                                               4 (expandable to 12 via an ECU-8S 8 line expansion unit).
Indicators                                                  128 x 64 pixel LCD display; Disablement; System fault; PSU fault; General fault; Power on.
Controls                                                     Handset; Scroll buttons; Hold; Call Accept; Function; Directory; Silence Buzzer.
Product dimensions (mm)                     410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid). Handset protrudes 80 mm beyond lid.
Construction & finish                             Metal lid and base, RAL7035 grey texture.
IP Rating                                                    IP20.
Weight                                                       3.1kg (without batteries).
Operating conditions                             -5ºC to +40ºC. Max relative humidity: 95%.


Download ECU4 Datasheet PDF
