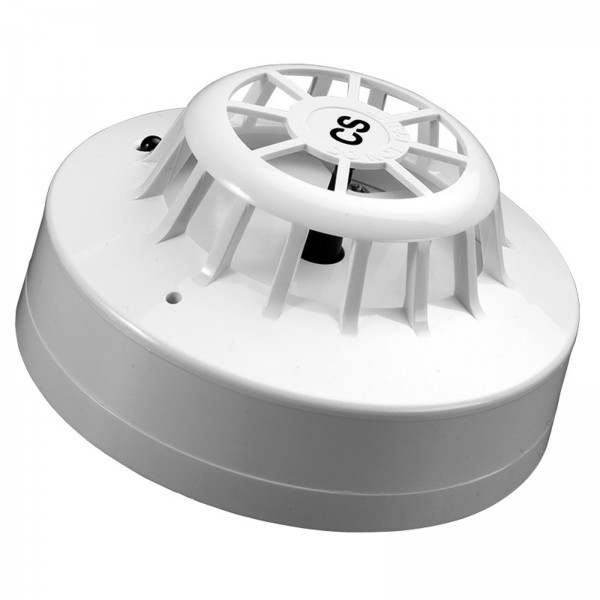

Apollo Series 65 CS 90 Degree Standard Heat Detector

Brand: Apollo
Product Code: 55000-137
Availability: 3-5 Days

£15.95 Inc VAT £13.29 Ex VAT

Qty

Apollo Series 65 CS 90 Degree Standard Heat Detector

A high-quality high heat static/rate of rise heat detector for use with four-wire conventional fire alarm systems.

Monitors temperature by using a dual thermistor network which provides a voltage output proportional to the external air temperature.

Can be used where smoke detectors are unsuitable.

Wide 9-33V DC operating voltage.

Certified to EN54-5 by the LPCB.

Red LED illuminates when the detector is in alarm.

Approvals/certifications                           Certified to EN54-5 by the LPCB.
Application temperature    25°C typical, 80°C max.
Static response temperature       54°C min, 100°C max.
Supply wiring                                              2-wire monitored, polarity sensitive.
Supply/operating voltage 9 to 33V DC.
Quiescent current 45µA @ 24 VDC.
Alarm voltage    6-28V DC.
Alarm current    17mA @ 9V DC.
Expansion connections    Remote LED output. Current sink to negative line limited to 17mA.
Product dimensions (mm) 100mm diameter x 50mm deep (detector in base); 100mm diameter x 42mm deep (detector only).
Construction & finish                                White polycarbonate V.O in accordance with UL94. Nickel plated stainless steel terminals.
IP Rating    IP23D.
Weight                                                         80g (detector only); 131g (detector in base).
Operating conditions/temperature       -20ºC to +90ºC.
