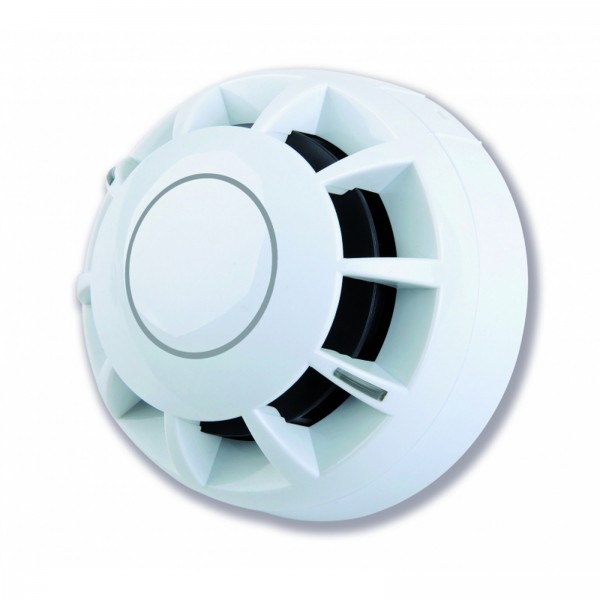

CTEC Activ Optical Smoke Detector C4416

Brand: CTEC
Product Code: C4416
Availability: In Stock

£13.14 Inc VAT £10.95 Ex VAT

Qty

0 reviews / Write a review

CTEC Activ Optical Smoke Detector

Suitable for use with standard conventional fire alarm systems.

Intertek certified to EN54-5, 7 & pt.29.

Wide 6-33V DC operating voltage.

Two 8mm x 2mm ultra-bright red LED indicating strips offering 360-degree visibility.

Drift compensation functionality ensures detector sensitivity is automatically calibrated to suit prevailing conditions and/or increased contamination levels.

Requires C4408, C4408D or C4408R base.

Approvals/certifications       Certified to EN54-7 by Intertek (0359-CPR-00183).
Application/operation         Uses an IR light source & photodiode to detect smoke. Typically used in escape routes, living areas, bedrooms & other enclosed spaces. Particularly effective at detecting slow                                                     burning fires caused by overheated electrical wiring or smouldering materials.
Application temperature    n/a.
Static temperature       n/a.
Sensitivity    Nominal alarm threshold of 0.16db/m obscuration measured in accordance with EN54-7:2000.
Supply wiring    2-wire monitored, polarity sensitive.
Supply/operating voltage    9 to 33V DC.
Quiescent current                   30µA @ 24 VDC.
Alarm voltage       6-33V DC.
Alarm current                        19mA @ 12-33V DC; 11mA @ 9V DC; 2.5mA@ 6V DC.
Alarm reset voltage                 Less than 1V DC (+0.5 seconds alarm reset time).
Expansion connections Remote LED output available via ActiV base. Current source to the negative line, short-circuit protected. Max voltage 2.7V DC.
Product dimensions (mm)     102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep.
Construction & finish              White polycarbonate casing rated to UL94 V-2 with nylon parts.
IP Rating    IP42.
Weight    99g..
